Industrial Gear Drive helical gear parallel shaft gearbox with solid output shaft for heavy duty power transmission applications

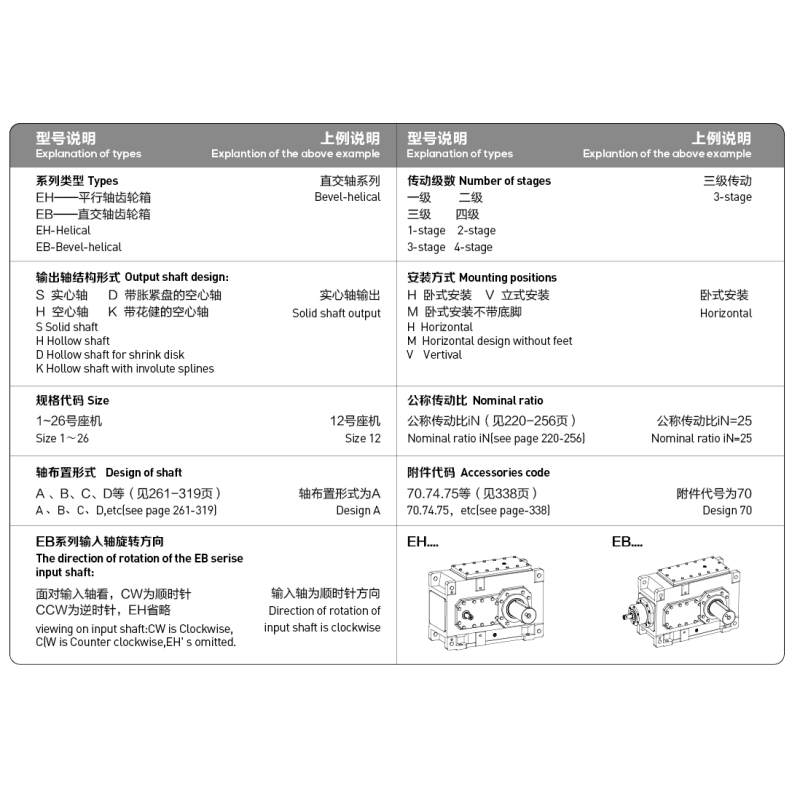

Model Number : EH3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26

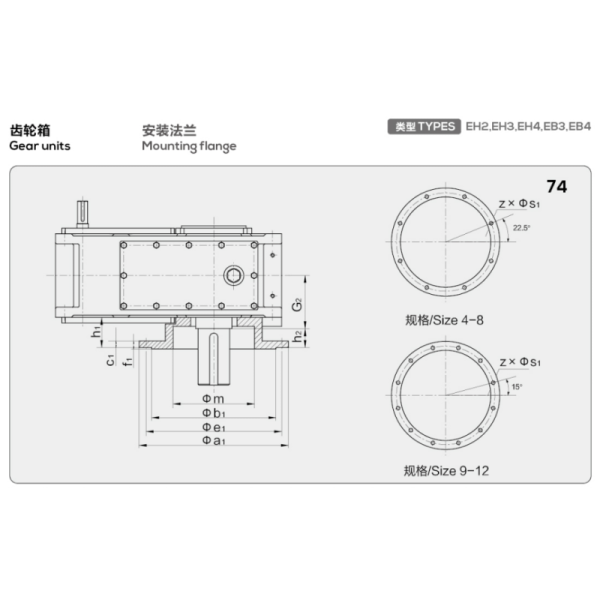

Mounting way : foot mounted, shaft mounted,shrink disc,spline shaft

Corrosion protection : Conservation acc. to Norm C1,C2,C3,C4,C5

Supply Ability : 999999

Input  speed : 750rpm,1000rpm,1500rpm,1800rpm

Packaging Details : strong wooden cases and pallets

Output Speed : 1.7-1200rpm

Certification : ISO9001,ISO14001,ISO24001,CE

Gear arrangement : Helical gear ,Bevel gear

Delivery Time : 30days

Output torque : 2-900KNm

Output shaft diameter : 80mm-420mm

MOQ : 1

Power range : 4KW-4823KW

Reduction stage : two transmission stages, three transmission stages, four transmission stages

Coating system : Standard coating, finishing coat, for all climatic zones

Input shaft diameter : 30mm-140mm

Color : blue RAL5010 /Grey RAL7031 or any color you need

Weight : 190KGS-16500KGS

Backstop : can be mounted with backstop if you request

Ratio : 1.25 – 450

Brand Name : EVERGEAR

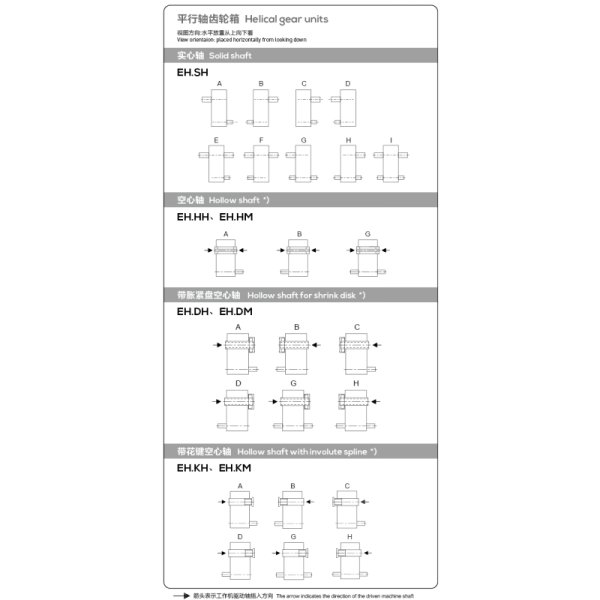

Output way : Solid shaft ,hollow shaft, hollow shaft , shrink disk,spline shaft

Ambient temperature : -40.00 [°C] ~ +50 [°C]

Direction of rotation of gear output shaft : CW rotation or CCW

Cooling way : without auxiliary cooling, with fan cooling, with cooling coil, with fan and cooling coil,with water cooling,with gear pump,with electric pump,with fan coolig,with independent fan cooling

Place of Origin : CHINA

Oil supply : Dip lubrication ,Forced lubrication
